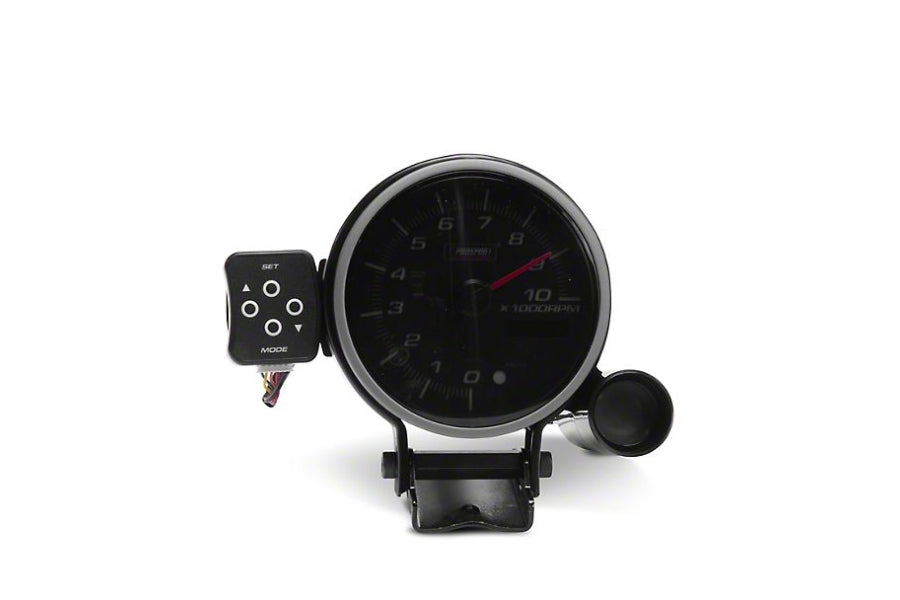

3-3/4" Tachometer Peak/Warning

3-3/4" Tachometer Peak/Warning

343SMTASWL270-PK
Regular price $145.00 $0.00 Unit price per
95mm (3.75")

Stand alone

Featuring a 0-10,000 RPM range with a 270° scale.
Swiss made stepper motor electronic movement ensures pinpoint accuracy

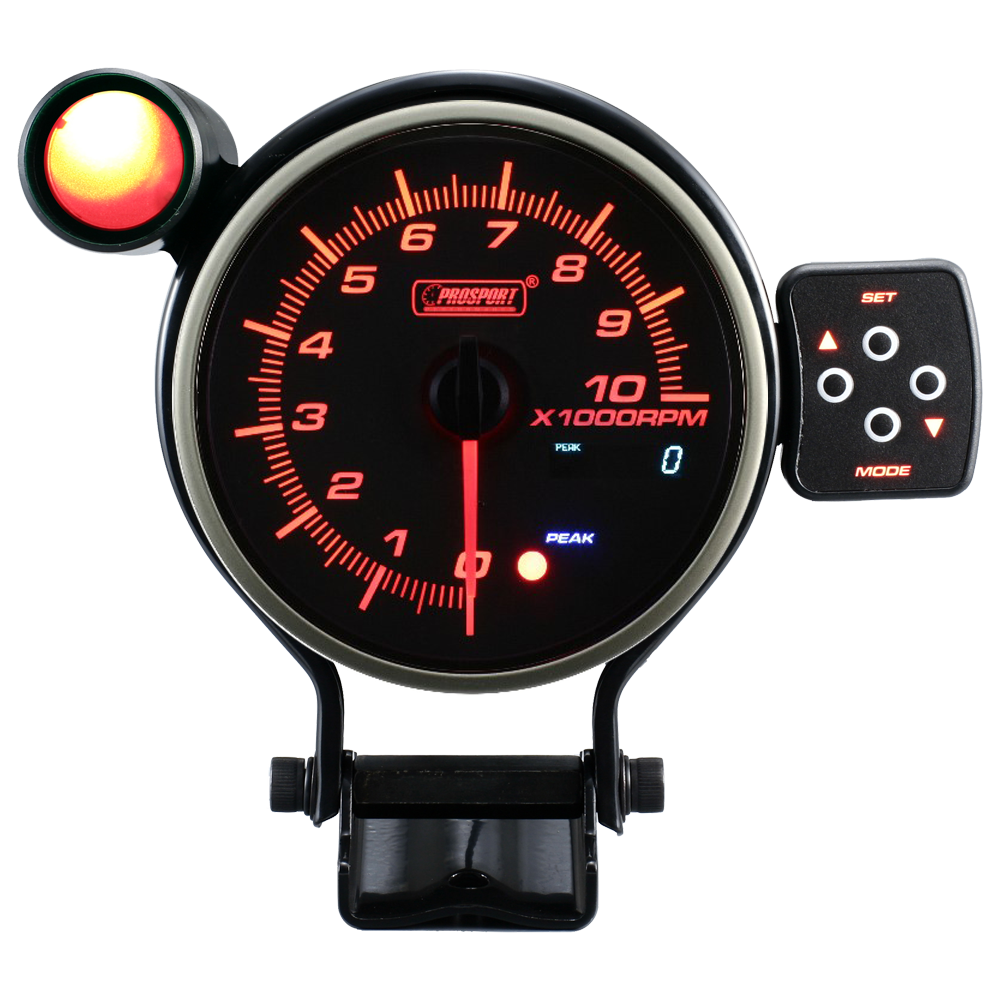

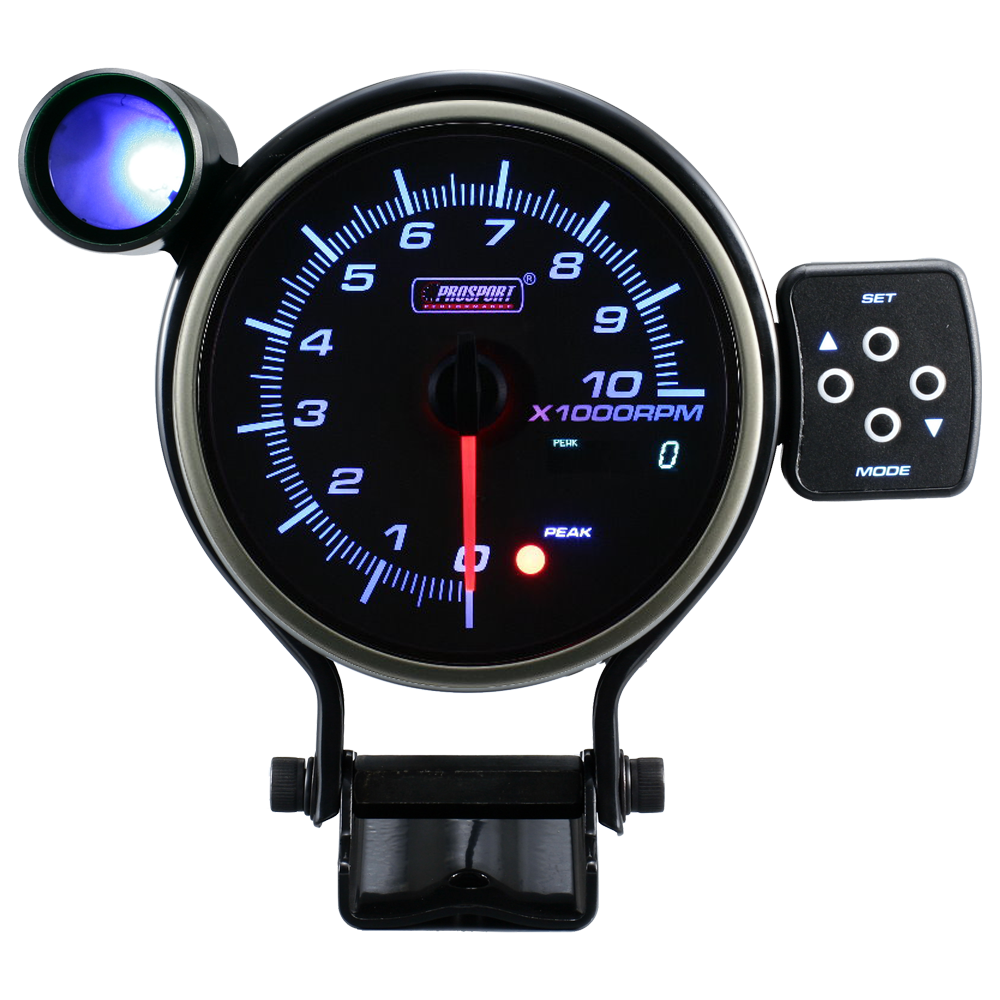

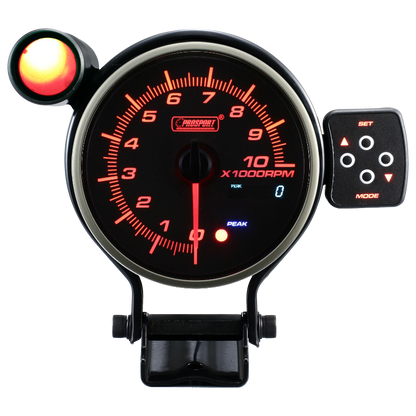

3 color display (White, Blue & Amber)

3 color external LED control box (Removable)

Opening & Closing ceremony when the gauge is turned on/off.
  • Peak recall
  • Dimmable
  • Fully programmable warning feature
  • Adjustable outer Bezel and be set the warning mark manually
  • Metal stand and metal mounting ring included
  • External warning light included (Removable)
  • Daisy chain system
  • Self diagnosis of sensors or short circuits
  • Illuminated Red pointer

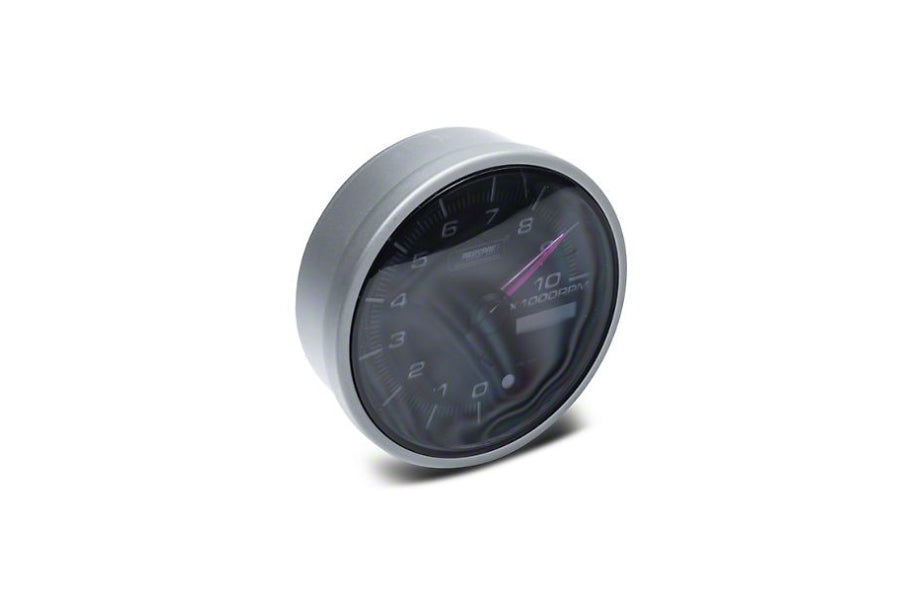

  • Gauge face is smoked out when off
With its pinpoint accuracy and lots of features this gauge is a sweet deal!

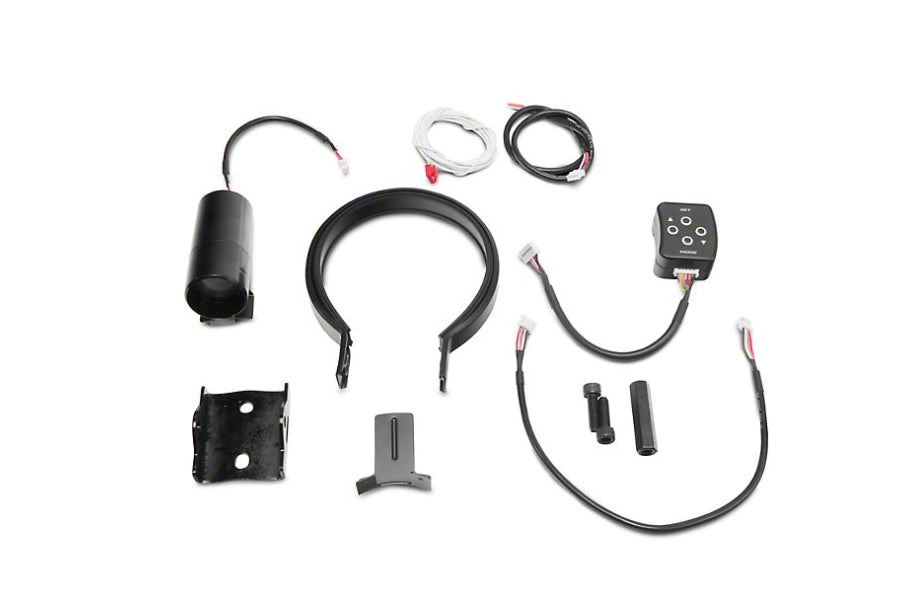

(Includes Mounting Hardware, external shift/warning light, control box, wiring and Instructions)

*Note: this is an electronic tachometer and thus requires a square wave electronic signal, some modern and most older vehicles pre 1998 will require a "12v square wave tach adapter". This Tachometer is designed for use with 1/2/3/4/5/6/7/8/9 cylinder engines.
Measurements:
  • Hole Diameter: 95mm
  • Depth: 30mm (including bolt/nut in back)
  • Bezel inner: 92.5mm
  • Bezel outer: 100.5mm
