2-1/16" EVO Wideband Digital Air Fuel Ratio kit216EVOAFRWB4.9-WO
Regular price $209.00

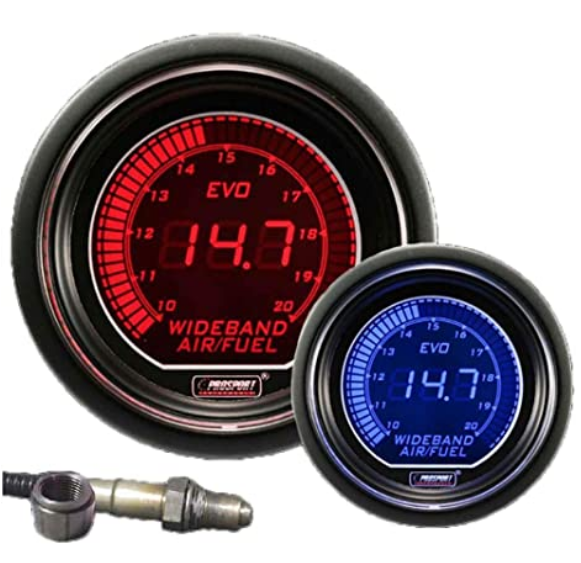

Wideband Air Fuel Ratio Gauge
52mm (2 1/16")
This one gauge will display Red or Blue and is dimmable!
Includes 0-5 volt output signal for data-logging
Utilizing the latest Bosch wideband O2 sensor -5 wire heated LSU 4.9 (Prosport Inc. is the only one in the USA to use them) our gauge now has the widest range 10.0:1 to 20.0:1 AFR readings on the planet.

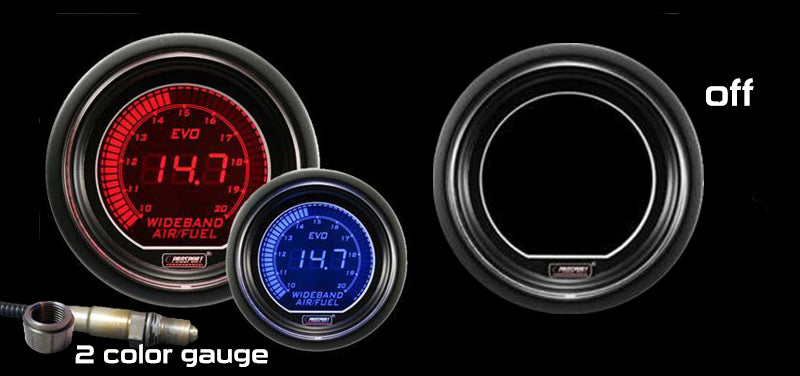

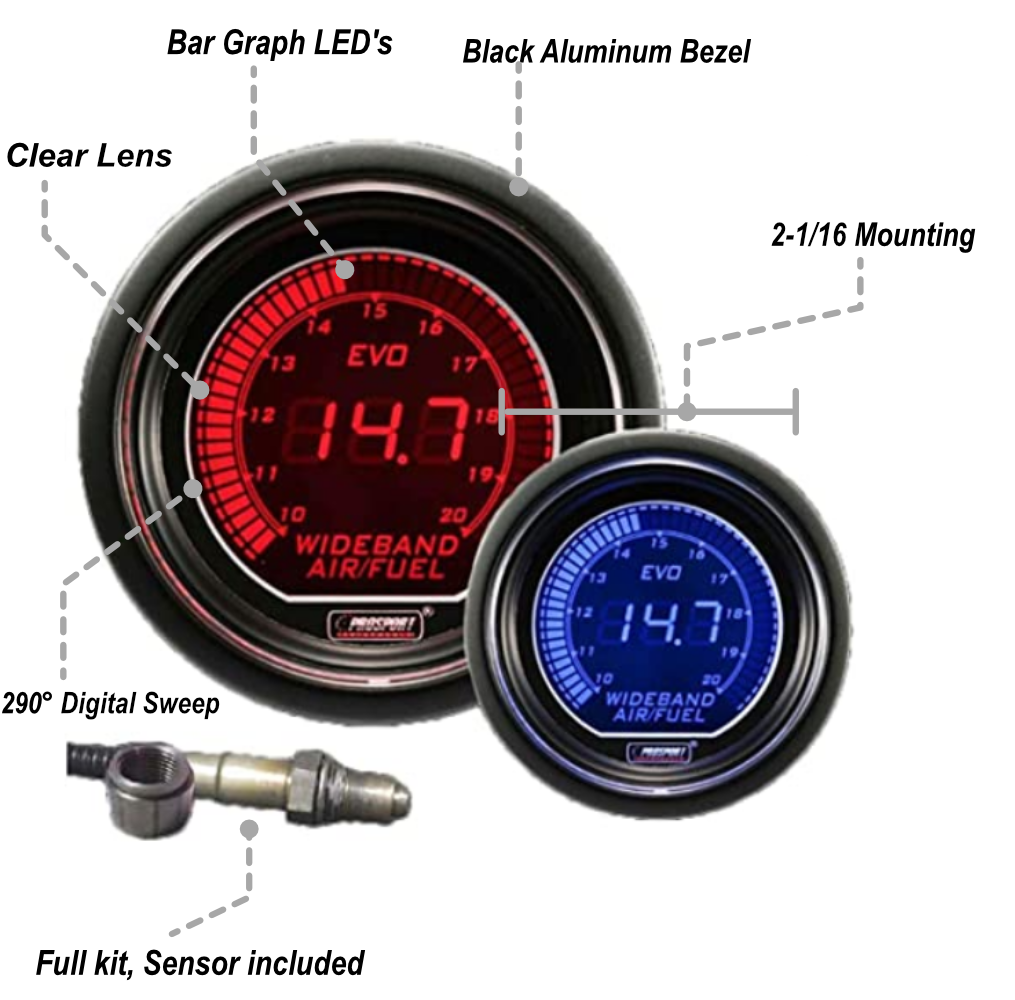

Featuring a Dual color (Red or Blue) readout in the center of the gauge and a bar-graph syle LED's around the outside of the gauge for immediate reference to AFR.

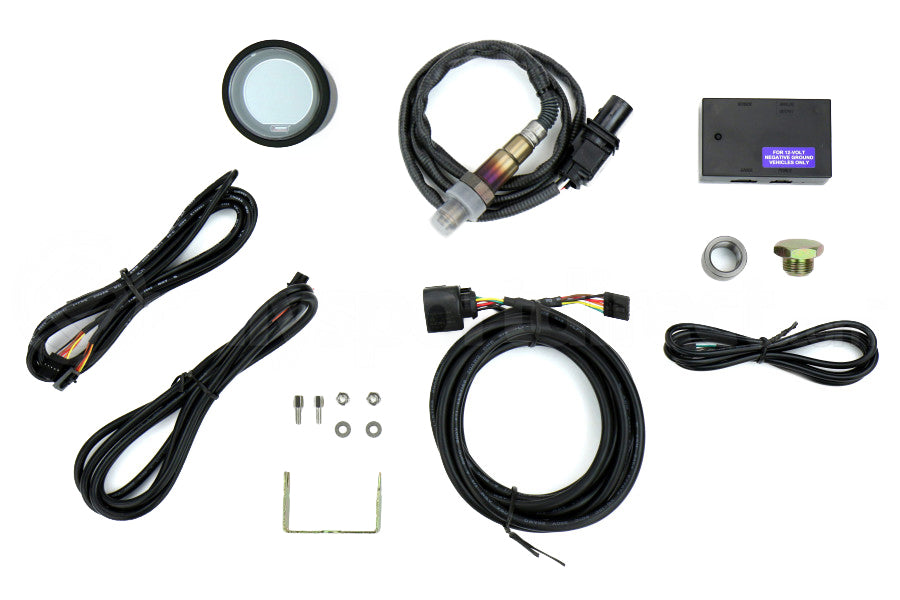

This is a complete kit that includes everything you need:
- AFR digital Gauge
- Bosch 4.9 5 wire heated O2 sensor
- UEGO Control Box
- Weld in Bung
- Wiring harness(Gauge to O2 sensor) 10 feet long
- Plug and play wiring harness
- 0-5 volt output signal for data logging
