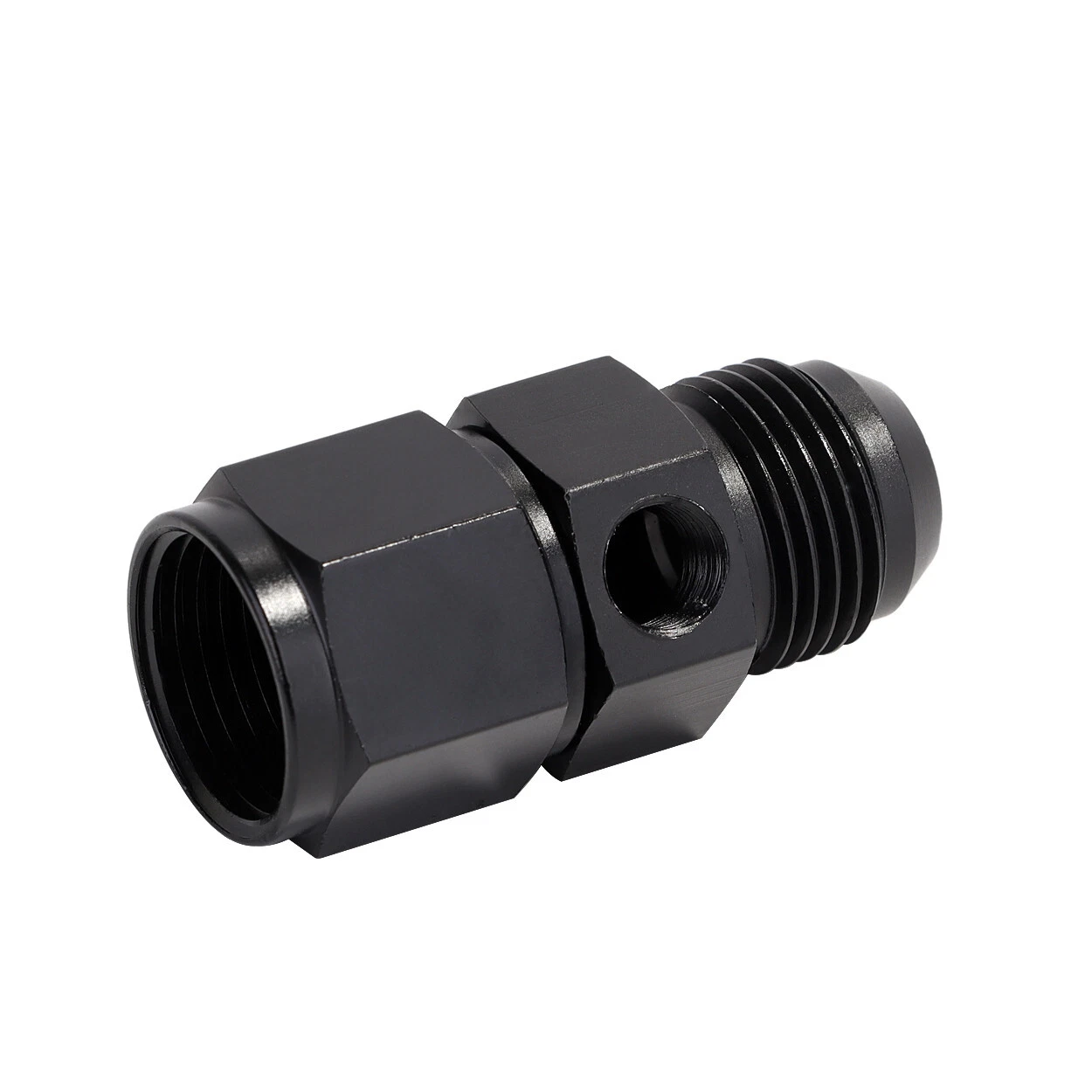

10AN Male to Female wiith 1/8th NPT port

10AN Male to Female Fitting with a 1/8" NPT Female Side Port

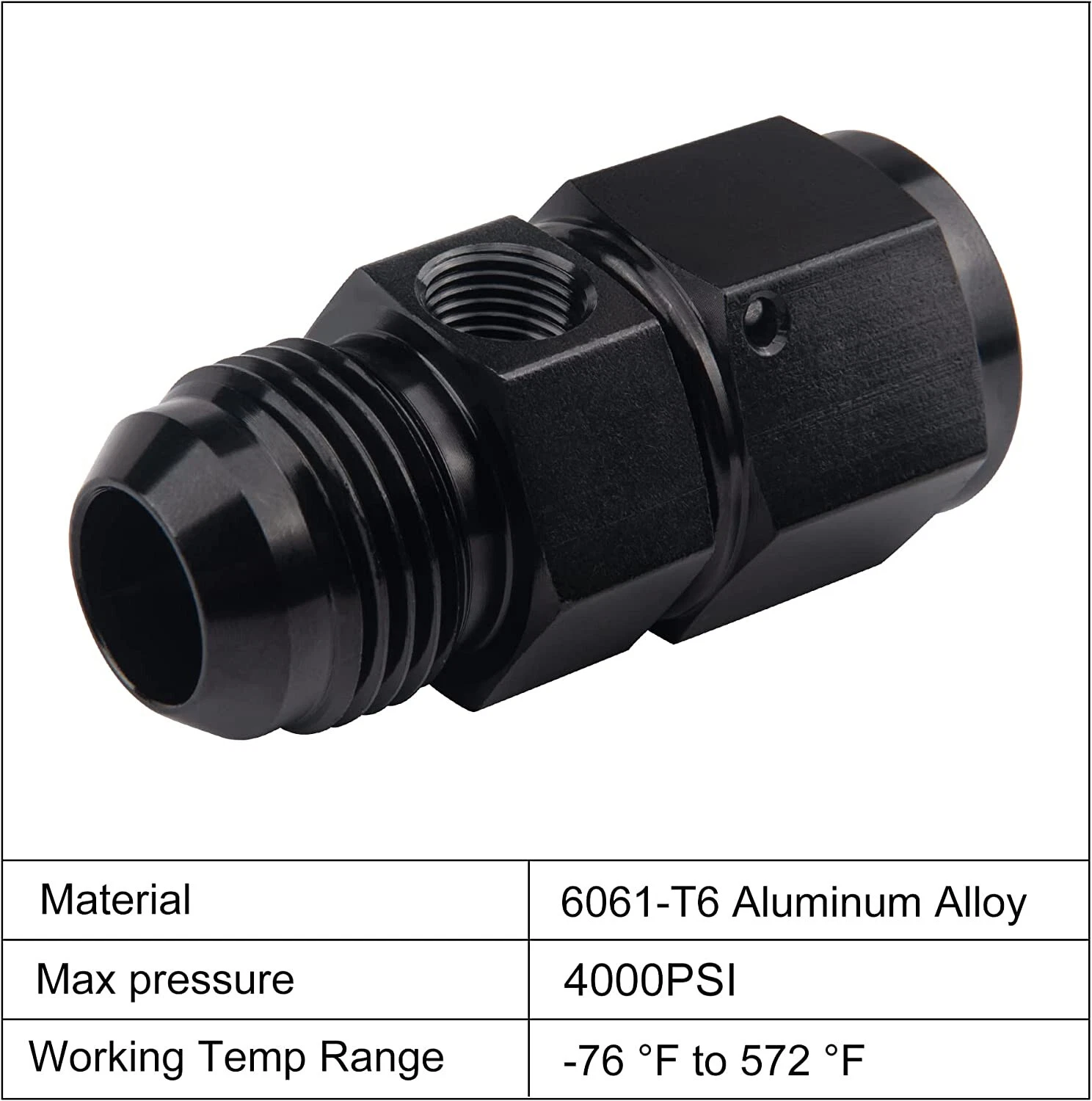

Specifications:

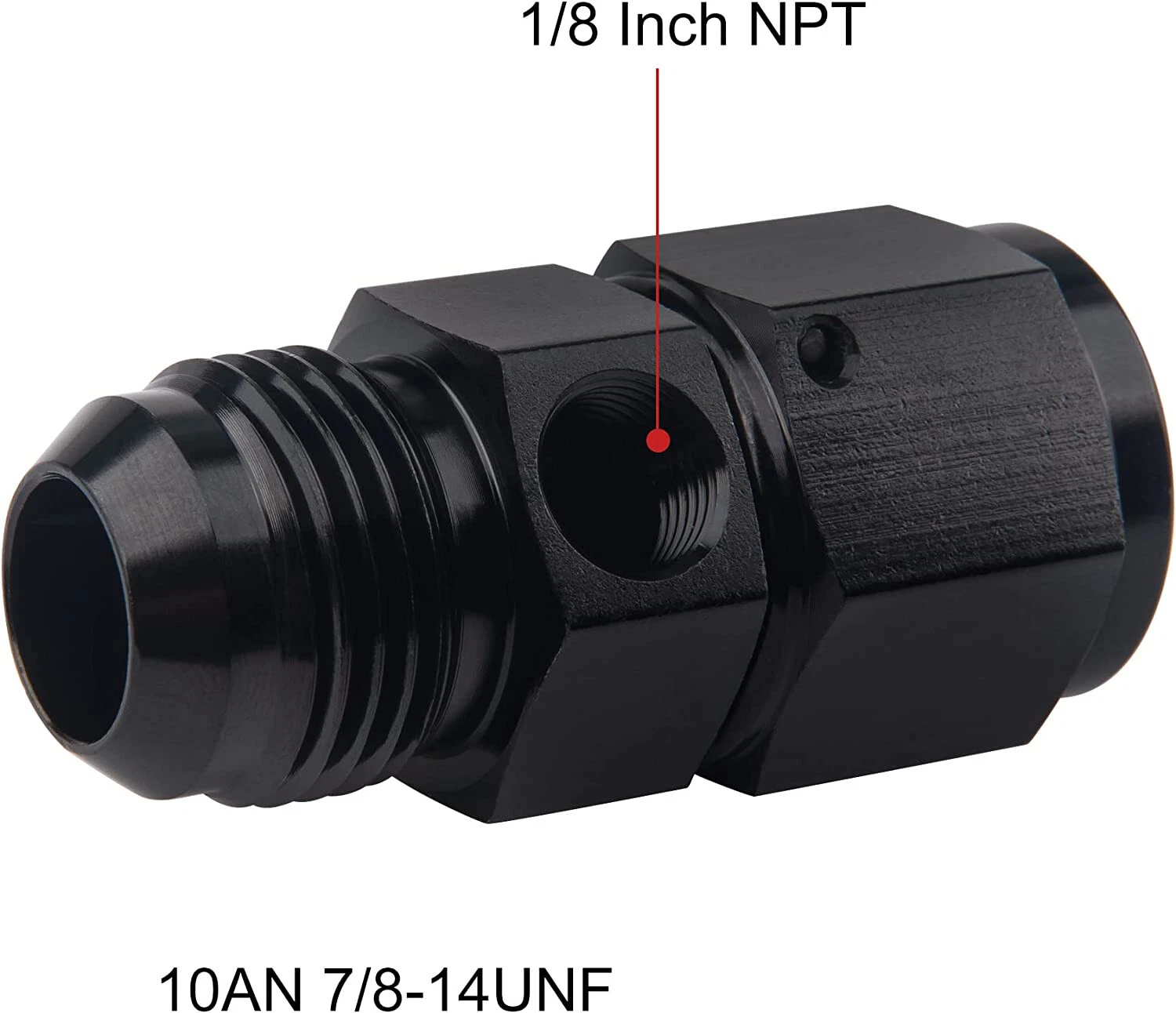

• Size: 10AN Male to 10AN Female with twin 1/8" NPT Female side port. Sealed with a 37° angle on the AN side.

• Max Working Pressure: 4000 psi

• Working Temperature Range: -76°F to 572°F

Features:

• Easy to Install: Direct replacement with a perfect fit. The 360° swivel design allows for easy installation and saves time. We recommend using an adjustable AN wrench for installation.

• Durable Construction: Made from lightweight, high-strength 6061-T6 aluminum alloy for superior durability and long service life. Black anodized for enhanced corrosion resistance and a sleek appearance.

• Widely Compatible: Ideal for fuel systems (fuel hoses, tanks, filters, pumps), cooler systems, high-pressure power steering lines, turbocharger scavenging pumps, oil filters, non-return valves, and hydraulic lines on tractors.

Benefits:

• CNC-machined one-piece design ensures efficient flow with no restrictions.

• Lightweight and compact, perfect for tight spaces.

• No need for additional adapters – connects directly to hose ends.

Note:

• Installation: Use an adjustable AN wrench for easy installation and removal. All dimensions are measured by hand, so please allow for a slight variation (0.5-1 inch).
