Prosport Gauges

Oil Filter Adaptor Plate

Oil Filter Adaptor Plate

PSOPOT-M20XP1.5

$38.00 USD
$38.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

🛠️ Easy Installation – Video Below!

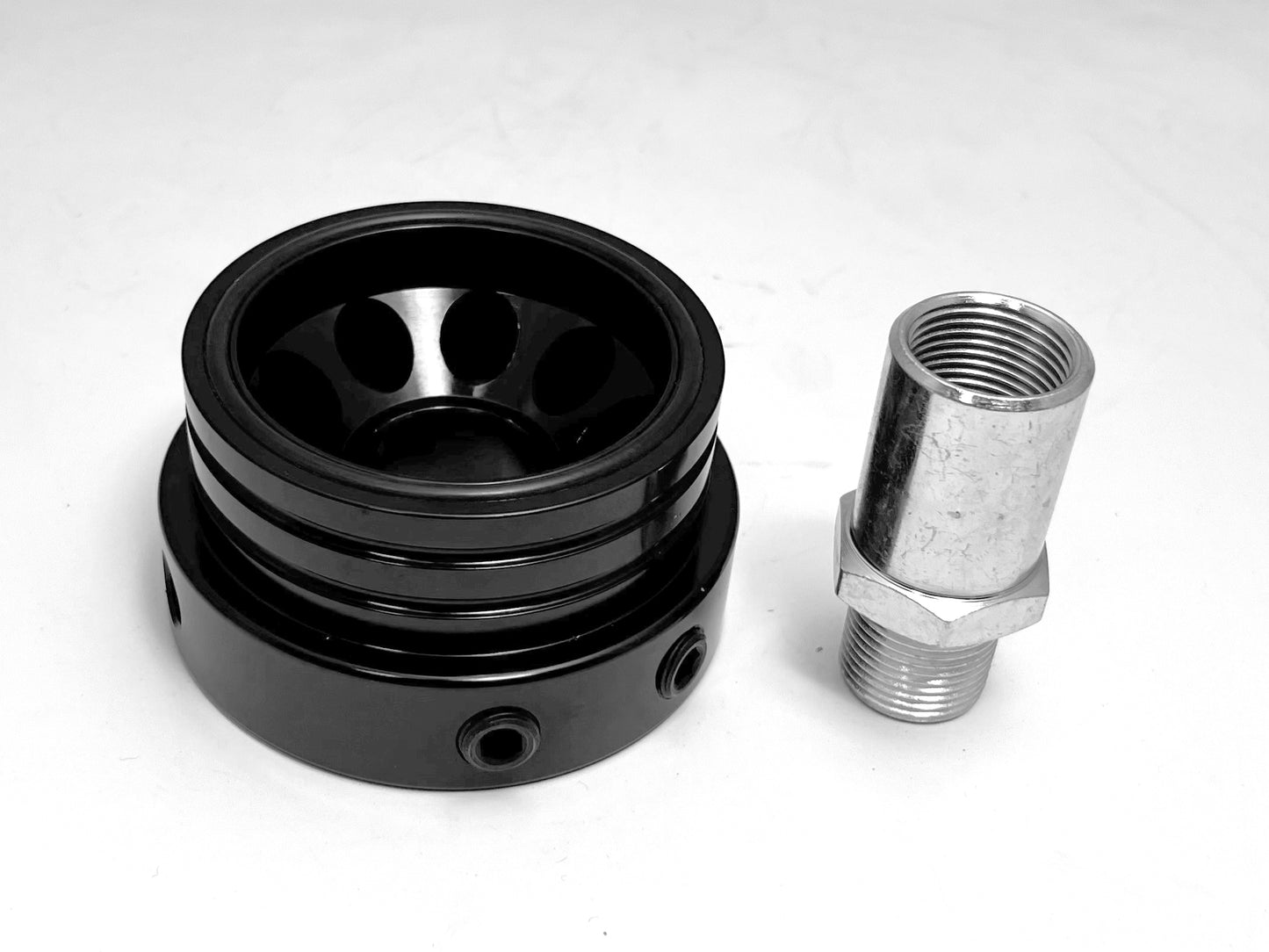

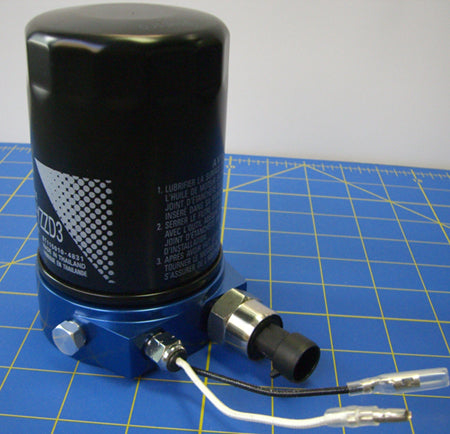

This aluminum sandwich plate makes it simple to install your Oil Pressure and Oil Temperature senders—no drilling or tapping required. Just:

  1. Remove your oil filter.
  2. Screw the plate on in its place.
  3. Reinstall the filter on top of the plate.
  4. Install your senders into the available ports.

The plate includes (4) 1/8" NPT fittings, 4 plugs, an O-ring gasket, and installation instructions. It can rotate 360° to help you find the ideal orientation for sender clearance.

⚠️ Fitment & Notes

  • If unsure about sizing, please call us.
  • Designed for spin-on oil filters only.
  • Plate adds 29mm (1.15") to your oil filter length—check clearance, especially on vehicles like the WRX, which may require heat shield modification.

🔩 Center Nut Torque Specs

  • Torque: 23 ft-lbs
  • Nut Size: 26mm (1")

📋 Size Options & Vehicle Compatibility

Here are baseline fitment suggestions. For exact compatibility, please call us Mon–Fri, 9 AM–5 PM EST.

🔧 M20 x 1.5

  • Subaru
  • Non-metric Honda
  • Mitsubishi, Acura
  • Hyundai
  • Nissan Sentra 2.5L, 350Z
  • Mazda RX-7, RX-8
  • Porsche
  • Honda S2000

*Note: Some modification may be required for 2006–2007 WRX TR edition. Consider our Remote Oil Pressure Kit as an alternative.

🔧 M22 x 1.5

  • Mazda 6 (V6)
  • Ford 6.8L Super Duty, 4.0L Mustang, Explorer, Sport Trac
  • Mustang GT 4.6L, F-Series 5.4L
  • Metric Honda Civic/CRX
  • Some Metric Chevy and Ford models

🔧 3/4 UNF-16

🔧 3/4 UNF-16 – Long Shaft

  • Toyota Celica
  • Scion tC, MR2
  • Lexus IS300 (2JZ-GE)

🔧 13/16 UNF-16

  • Most early Chevy 4/6/8 cyl. (305, 5.0, 5.7)
  • Some Buick, Pontiac, Oldsmobile
  • Does not fit big blocks or Gen 1 350.

🔧 M18 x 1.5

  • Some Pontiac and Chevy 5.7L

🔧 Sensor Installation Tips

  • NPT threads are tapered—tighten by hand, then turn 3/4 to 1.5 turns more.
  • Some exposed threads are normal and necessary for sealing.
  • Use Teflon tape or Loctite on the threads for a proper seal.
  • Do not overtighten or you may damage the threads.

📹 Installation Video

View full details

Customer Reviews

Based on 5 reviews
40%
(2)
40%
(2)
0%
(0)
0%
(0)
20%
(1)
M
Michael

Part seems decent quality metal, but it leaks a lot. Even tightened down and thread sealant on everything, it still leaks between the oil filter and this.

Also, wasn't much easier to install over any other method. Not worth the money, and I'll be seeing about a refund.

H
Harris

Good product,
easy installation

B
Brenda

Never received it..but the gages are great

L
Laura

Used on 2013 WRX Hatch with 52mm Prosport Premium Oil Pressure gauge.
The plug bolts are aluminum, so be very careful with over-tightening them. I got a slight oil leak with one because it wasn’t tightened all the way, easy fix. The harness that connects with the gauge could be a few feet longer, was rough routing it around the headers (to keep away from heat) through the firewall, got it to run under the engine, up to the wheel well but it was tight and will need teflon. Would recommend grabbing a longer harness so you can route directly up (along the air filter) and run along the firewall to the grommet on the drivers side wheel well.
Does clear the plastic shield covering the oil pan/headers.

j
jesse

Installed on my 17’ STI. Does exactly what it’s supposed to, zero leaks. Running an oil pressure and oil temp sensor on it.
